Type-C DC Mini Fan Control Board 3.7V-5V

Rechargeable Type-C DC Mini Fan Controller Board 3-Speed Module

The Rechargeable Type-C DC Mini Fan Controller Board is a compact and efficient speed control module specially designed for portable mini fans, DIY cooling systems, and custom electronics projects. This controller board supports stable operation with a 3.7V 18650 lithium battery and provides smooth 3-level fan speed adjustment for better airflow control and energy efficiency.

Equipped with a modern Type-C USB charging port, this module offers convenient charging compatibility with common mobile chargers, power banks, and USB adapters. The built-in LED indicators help users easily monitor charging and power status during operation. Whether you are building a custom handheld fan, upgrading an existing mini fan, or developing a DIY electronics project in Bangladesh, this board provides a reliable and user-friendly solution.

DIY electronics enthusiasts, students, robotics learners, and makers frequently use this fan controller board in various projects because of its compact size, easy wiring design, and efficient speed control functionality. At Biggan Project BD, this type of mini fan module is highly popular for science projects, portable electronics, and low-power cooling applications.

The board is designed for low-voltage DC fan motors and helps maintain smooth performance while minimizing unnecessary power consumption. Its lightweight structure and simple installation process make it suitable for beginners and advanced electronics users alike. For electronics hobbyists and DIY creators in Bangladesh and BD maker communities, this module is an excellent addition to portable cooling and battery-powered device projects.

Product Specifications

Features

• Compact and lightweight mini fan controller module
• Supports rechargeable 18650 lithium batteries
• Modern Type-C USB charging interface
• Three-level adjustable fan speed control
• Easy installation and simple wiring setup
• Stable output for low-voltage DC fan motors
• LED charging and power status indicators
• Suitable for portable and battery-powered projects
• Efficient power management for longer battery usage
• Ideal for DIY electronics enthusiasts in Bangladesh

Applications / Use Cases

• Rechargeable handheld mini fan projects
• Portable desktop cooling fans
• DIY electronics and robotics projects
• Battery-powered ventilation systems
• Student science fair projects
• Custom fan speed controller systems
• Small cooling solutions for electronics
• Educational electronics learning kits
• Portable air circulation devices
• USB rechargeable gadget development

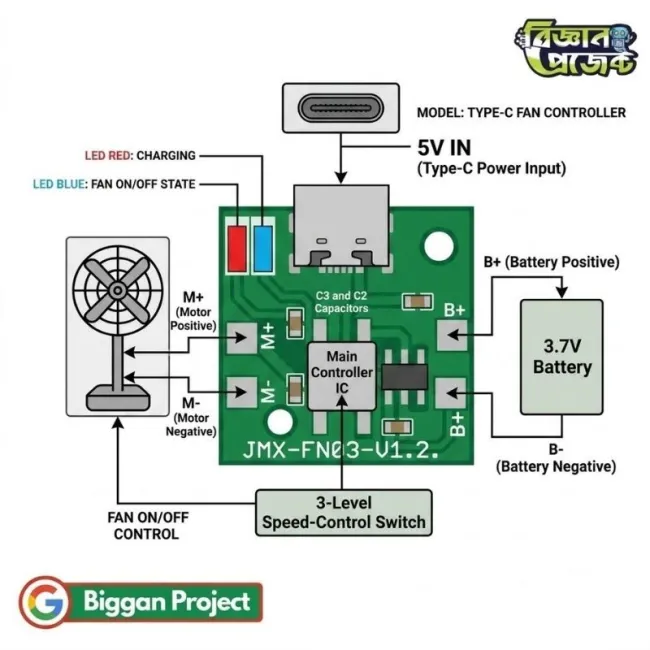

User Guide / How to Use

• Connect a compatible 3.7V 18650 lithium battery to the board
• Attach the DC mini fan motor to the output terminals
• Use a Type-C USB charger for charging the battery
• Press the control button to cycle through speed levels
• Observe LED indicators for charging and power status
• Mount the board securely inside the fan casing if needed
• Avoid reverse battery connection during installation
• Use compatible low-voltage DC fan motors for best performance

Frequently Asked Questions (FAQs)

• Q: Does this module support Type-C charging?
  A: Yes, the board includes a Type-C USB charging port.
• Q: What battery type is required?
  A: It supports a 3.7V 18650 lithium battery.
• Q: Can I control fan speed with this board?
  A: Yes, the module supports 3-speed fan adjustment.
• Q: Is this suitable for DIY projects?
  A: Yes, it is widely used in DIY electronics and portable fan projects.
• Q: Can I use this with small DC motors?
  A: It is mainly designed for low-voltage DC mini fan motors.
• Q: Are charging indicators available?
  A: Yes, the module has LED charging and power indicators.

Challenges and Considerations

• Requires proper battery polarity connection
• Not suitable for high-power industrial fan motors
• Battery should be charged using compatible power adapters
• Excessive motor load may reduce performance efficiency
• Careful insulation is recommended during DIY installation
• Water exposure should be avoided during operation

Compatibility

• 3.7V 18650 lithium batteries
• Portable DC mini fan motors
• USB Type-C charging adapters
• DIY electronics projects
• Rechargeable handheld fan systems
• Low-voltage cooling devices
• Custom portable electronics builds

Future Enhancement Options

• Add higher-capacity rechargeable battery support
• Integrate digital speed display functionality
• Upgrade to PWM-based speed control system
• Add overcharge and discharge protection features
• Integrate wireless remote fan control capability
• Improve compatibility with additional DC motor types

Benefits

• Provides convenient rechargeable fan control
• Supports energy-efficient cooling solutions
• Simple operation with multi-speed adjustment
• Compact size for portable applications
• Easy integration into DIY electronics projects
• Suitable for educational and hobby use in BD
• Modern Type-C charging compatibility
• Reliable performance for small fan systems

Conclusion

The Rechargeable Type-C DC Mini Fan Controller Board is a practical and efficient solution for portable fan control and DIY electronics applications. With its 3-speed adjustment, Type-C charging support, and compatibility with 18650 lithium batteries, it is an excellent choice for students, hobbyists, and makers in Bangladesh. Whether for science projects, custom cooling systems, or portable fan development, this compact module offers reliable and flexible performance for a wide range of electronics applications.
