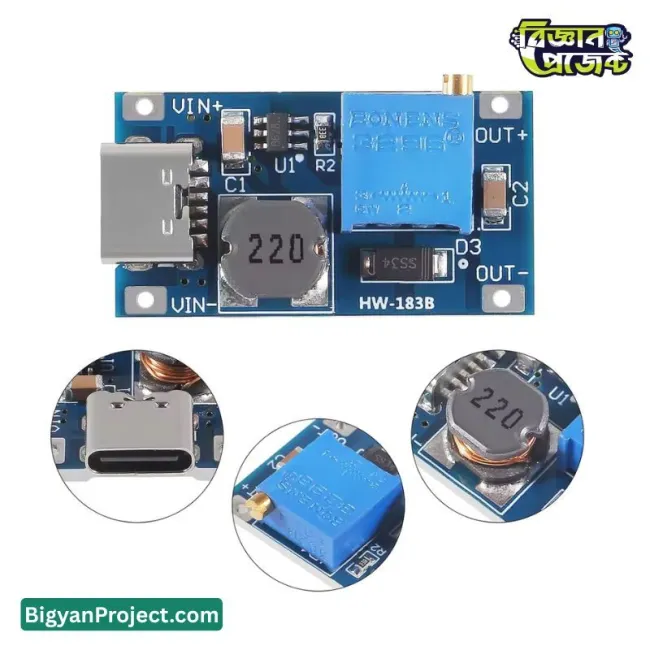

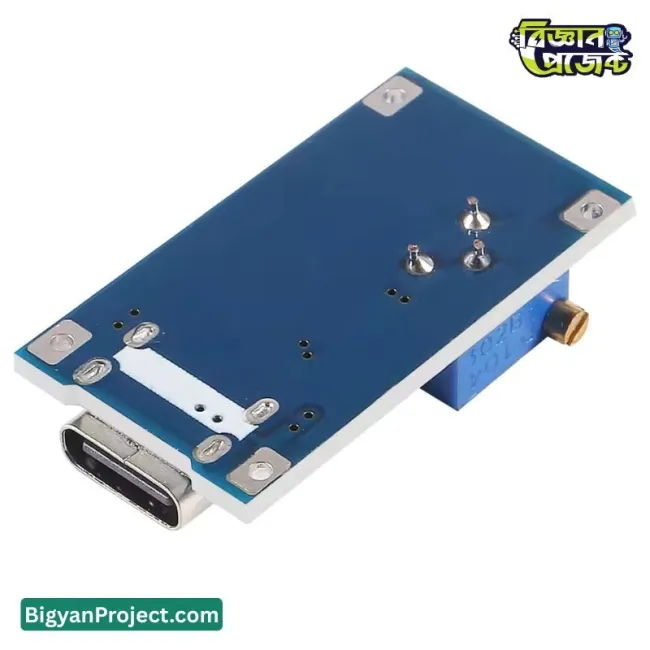

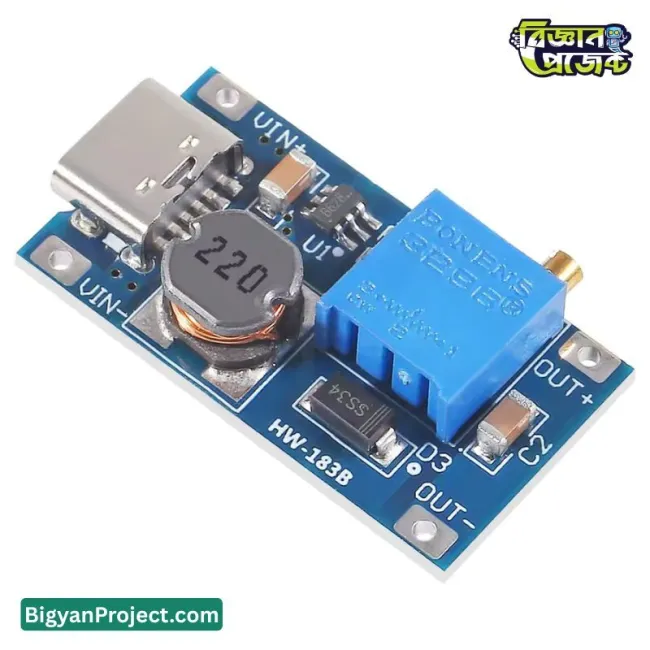

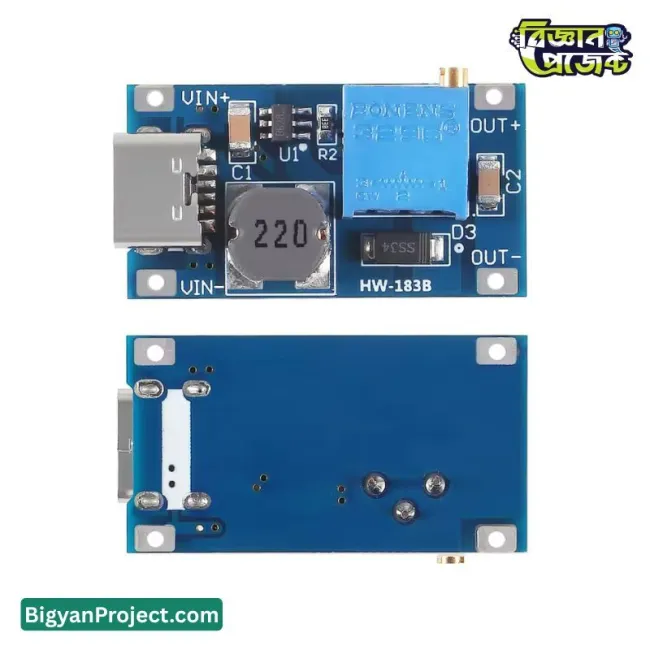

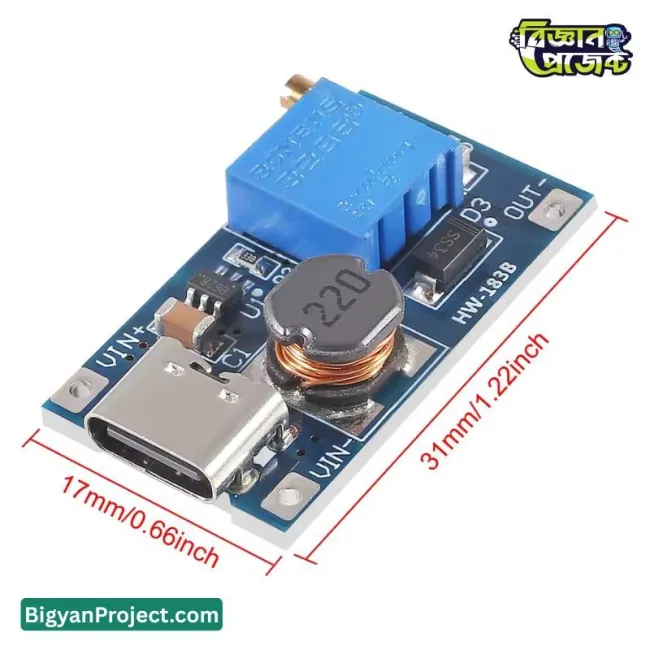

MT3608 Type-C DC-DC Boost Converter 2A Adjustable 5-28V

MT3608 Type-C DC-DC Adjustable Step-Up Voltage Converter Module 2A

The MT3608 Type-C DC-DC boost converter is a compact and efficient step-up voltage regulator designed to convert a lower DC voltage into a higher adjustable output. This module is widely used in electronics prototyping, robotics, embedded systems, and battery-powered circuits. The onboard multi-turn potentiometer allows precise tuning of the output voltage, making it suitable for powering 5V, 9V, 12V, and even higher voltage circuits from low-voltage sources such as lithium batteries, power banks, or solar cells.

Unlike fixed regulators, this adjustable boost converter offers flexibility for developers, students, and hobbyists. The integrated Type-C input interface makes powering the module simple and modern, especially when using USB power adapters or power banks. Built-in protection mechanisms such as undervoltage lockout, overcurrent limiting, and thermal protection improve operational reliability and circuit safety. It is a commonly recommended module for electronics learners and robotics enthusiasts purchasing components from Bigyan Project.

Product Specifications

Features

• High efficiency switching boost regulator design
• Adjustable output voltage using precision potentiometer
• Type-C input support for modern USB power sources
• Wide input voltage range suitable for batteries and adapters
• Compact size ideal for embedded electronics projects
• Built-in protection for safer operation
• Stable output voltage performance
• Lightweight module suitable for portable devices

Applications / Use Cases

• DIY adjustable regulated power supply
• Robotics and Arduino projects
• Battery-powered electronics
• Portable device prototyping
• Powering 5V and 12V modules from lithium batteries
• Solar power voltage boosting circuits
• Embedded systems development
• Learning electronics and engineering education kits

User Guide / How to Use

• Connect the input power source to Type-C or IN+ and IN- terminals
• Ensure the input voltage is lower than desired output voltage
• Use a multimeter to monitor output voltage
• Rotate the onboard potentiometer slowly to adjust voltage
• Set the required output voltage before connecting your device
• Connect your load to OUT+ and OUT- terminals
• Avoid short circuits during adjustment

Frequently Asked Questions (FAQs)

• Q: Can this module convert 5V to 12V?
  A: Yes, it can step up 5V input to 12V output after proper adjustment.
• Q: Can I power it using a power bank?
  A: Yes, the Type-C input allows easy operation using USB power banks.
• Q: Is the output voltage fixed?
  A: No, it is adjustable using the onboard potentiometer.
• Q: What happens if the load draws too much current?
  A: The module activates current limiting and thermal protection to prevent damage.
• Q: Is it suitable for Arduino projects?
  A: Yes, it is commonly used to provide stable voltage to microcontroller circuits.

Challenges and Considerations

• Input voltage must always be lower than the output voltage
• Continuous high current loads may cause heating
• Proper ventilation is recommended during high power usage
• Incorrect adjustment may damage connected electronics
• Not suitable for very sensitive analog circuits without filtering

Compatibility

• Arduino boards
• ESP32 and ESP8266 modules
• Raspberry Pi auxiliary power circuits
• Rechargeable lithium batteries
• Solar panels with low voltage output
• DC motors and relays requiring higher voltage

Future Enhancement Options

• Add a heatsink for higher load applications
• Use a voltmeter display module for monitoring
• Integrate with battery management system
• Add output filtering capacitor for cleaner power
• Combine with enclosure for portable lab power supply

Benefits

• Allows higher voltage from low voltage sources
• Improves flexibility of power design
• Reduces need for multiple power adapters
• Compact and easy to integrate
• Useful for students, hobbyists, and engineers
• Commonly stocked electronics component at Bigyan Project

Conclusion

The MT3608 Type-C boost converter module is a practical solution for anyone needing adjustable higher voltage from a lower power source. Its compact size, protection features, and flexible configuration make it a reliable choice for DIY electronics, robotics, and embedded development projects. Whether you are learning electronics or building advanced circuits, this module serves as an essential power management component available through Bigyan Project.
