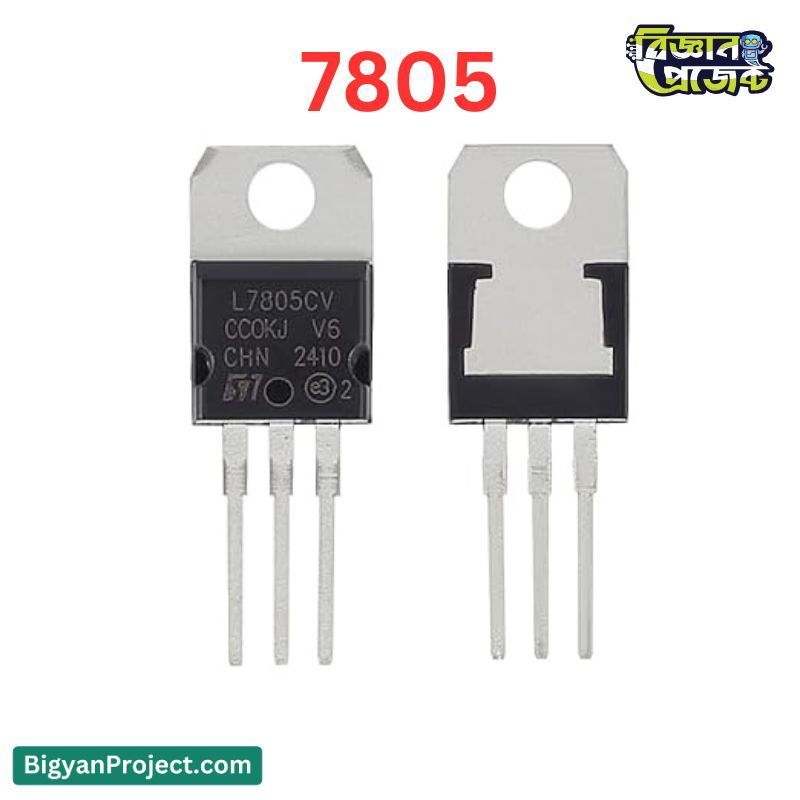

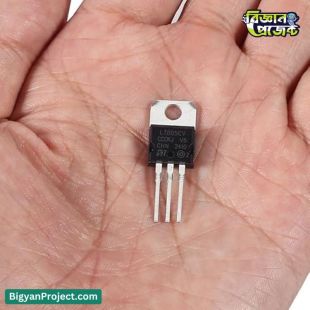

LM7805 L7805CV 7805 Voltage Regulator IC 5V 1.5A TO-220

LM7805 L7805CV 7805 Positive Voltage Regulator IC 5V 1.5A TO-220

The LM7805 L7805CV 7805 is one of the most reliable linear voltage regulator ICs, designed to provide a fixed 5V output with up to 1.5A current. Housed in a TO-220 package, this three-terminal regulator ensures stable voltage for a wide range of circuits. Whether you are building a power adapter, automation system, or a DIY electronics project, the LM7805 remains a trusted choice. At Bigyan Project (বিজ্ঞান প্রজেক্ট), we provide authentic and high-quality regulators to help students, hobbyists, and professionals power their projects with confidence.

Product Specifications

Features

• Fixed 5V regulated output with 1.5A current capability
• Internal short-circuit protection for safe operation
• Thermal overload protection to prevent overheating
• No external compensation components required

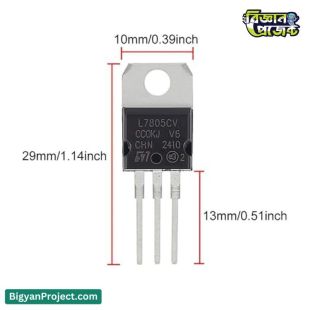

• Compact and reliable TO-220 package design
• Suitable for both professional and DIY electronics projects
• Ensures voltage stability for microcontrollers, sensors, and communication circuits

Applications / Use Cases

• Power supply circuits for Arduino, ESP8266, ESP32, Raspberry Pi modules
• Industrial automation and instrumentation systems
• Automotive electronics and embedded devices
• Communication devices and regulated limiting circuits
• DIY electronics projects and academic science projects
• Adapters, battery-powered systems, and robotics projects

User Guide / How to Use

To use the LM7805 L7805CV regulator in your project, connect the input pin to a DC voltage source (typically 7V–20V). The ground pin must be connected to the system ground, while the output pin provides a stable 5V regulated output. It is recommended to use input and output capacitors (e.g., 0.33µF on input and 0.1µF on output) to improve stability and reduce noise. For higher current loads, a heatsink may be required to prevent overheating. At Bigyan Project (বিজ্ঞান প্রজেক্ট), we encourage students to learn safe usage by checking input voltage and load requirements before connecting the regulator.

Frequently Asked Questions (FAQs)

• Q: What input voltage does the LM7805 support?
  A: The regulator works best with input voltages between 7V and 20V.
• Q: Can the LM7805 provide more than 1.5A output current?
  A: No, the maximum recommended output is 1.5A. For higher current, external pass transistors or switching regulators are needed.
• Q: Does the LM7805 need external components?
  A: Basic operation does not require external parts, but capacitors on input and output improve performance.
• Q: Can I use LM7805 for Arduino and ESP projects?
  A: Yes, it is widely used to power microcontrollers like Arduino, ESP8266, ESP32, and sensors.
• Q: What happens if the circuit short-circuits?
  A: The IC has built-in short-circuit and thermal protection to prevent damage.

Challenges and Considerations

• Drops excess voltage as heat, requiring a heatsink in high-load conditions
• Not energy-efficient compared to switching regulators
• Limited to 1.5A output current
• Requires proper input voltage (at least 2V above output)

Compatibility

• Works with Arduino boards and microcontrollers
• Compatible with ESP8266, ESP32, and IoT modules
• Used in Raspberry Pi peripheral circuits (not direct power for Pi itself)
• Supports analog and digital sensors requiring stable 5V
• Suitable for robotics, automation, and educational kits

Future Enhancement Options

• Use with external pass transistors for higher current output
• Combine with switching regulators for better efficiency
• Add heat dissipation solutions for industrial use
• Integration with smart power modules for IoT applications

Benefits

• Provides a stable 5V regulated output for sensitive electronics
• Increases reliability of circuits by preventing voltage fluctuations
• Protects connected components with built-in safety features
• Cost-effective and widely available for students and hobbyists
• Trusted by engineers, used in industrial and educational projects
• Easily available at Bigyan Project (বিজ্ঞান প্রজেক্ট) for science and electronics learners

Conclusion

The LM7805 L7805CV 7805 Positive Voltage Regulator IC is a fundamental component in the world of electronics. With its ability to provide a stable 5V supply at 1.5A, along with short-circuit and thermal protection, it has become the industry standard for regulated power supply design. From professional automation systems to student DIY projects, this regulator is essential for reliable performance. At Bigyan Project (বিজ্ঞান প্রজেক্ট), we ensure that our customers receive authentic and high-quality regulators to build innovative science projects and electronic solutions with confidence.
